Home > All Collections > Ultra Fast Charger > 160kW, 240kW Series DC EV Charger Fast Commercial Charging Station with Four Gun for Fleets, Business Vehicle, Bus, Truck

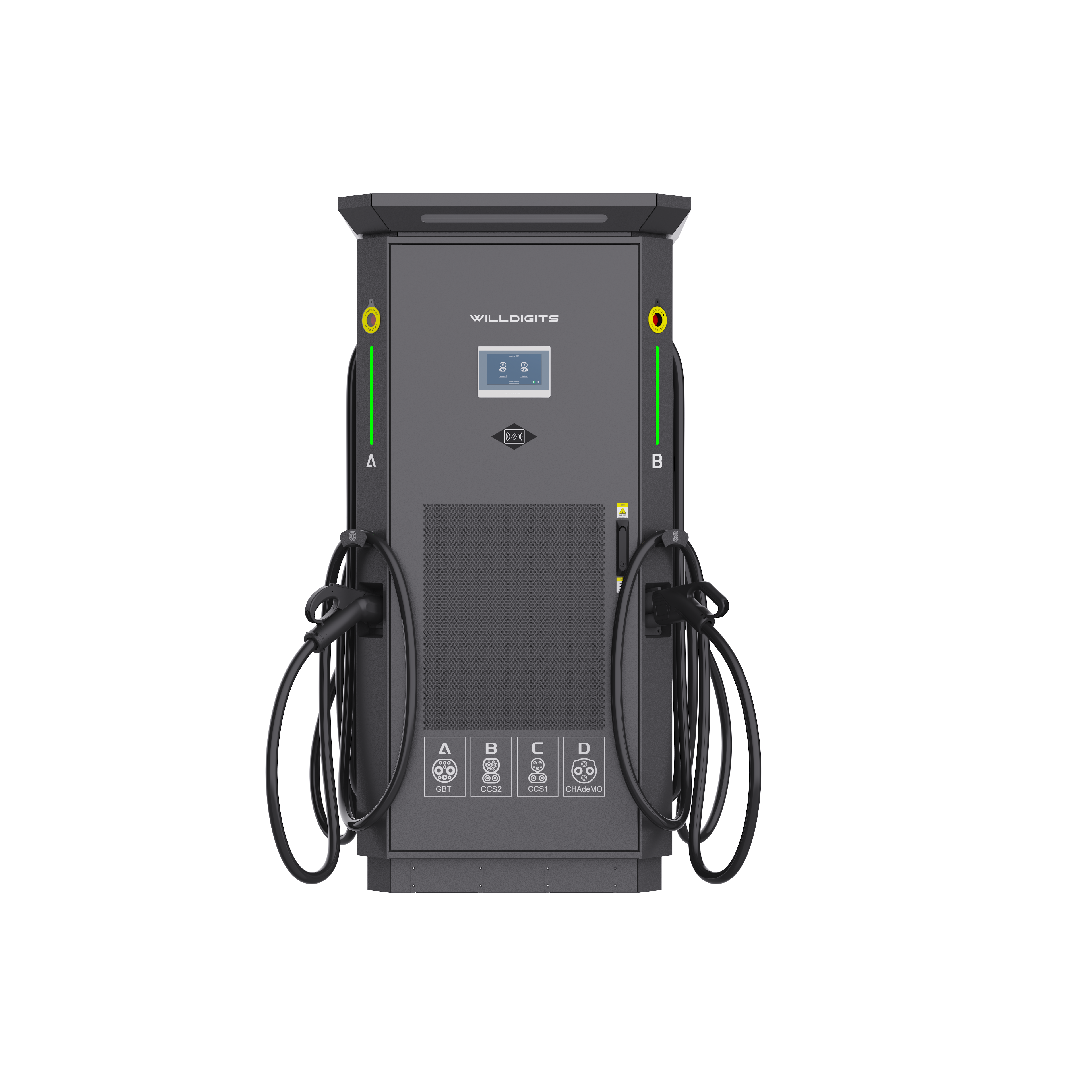

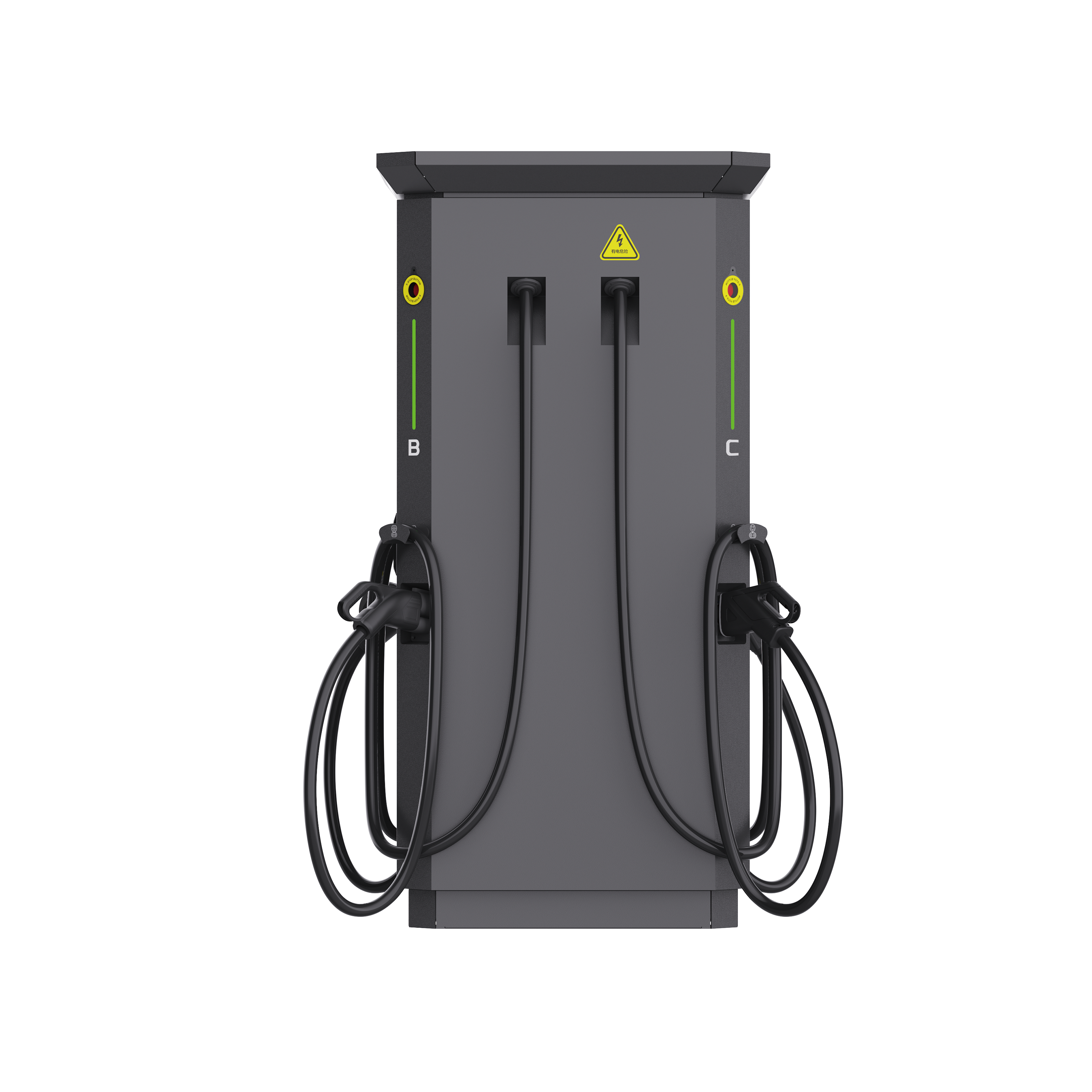

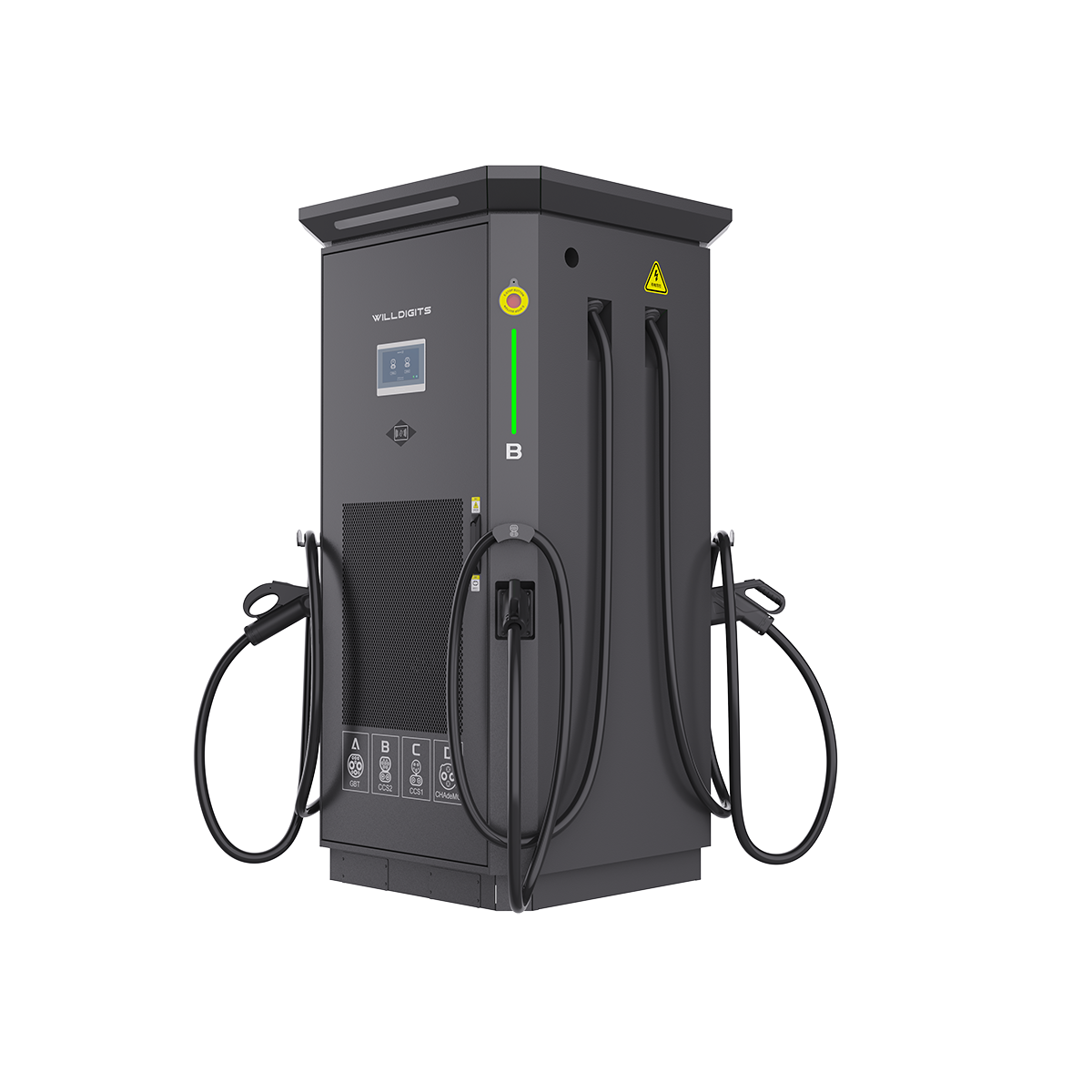

160kW, 240kW Series DC EV Charger Fast Commercial Charging Station with Four Gun for Fleets, Business Vehicle, Bus, Truck

Name: 160kW, 240kW Series DC EV Charger Fast Commercial Charging Station with Four Gun for Fleets, Business Vehicle, Bus, Truck
Brand: BPM
SKU: BPM-DC160-CD04 BPM-DC240-CD04
Availability: InStock
Rating: 5 (1 reviews)

No.BPM-DC160-CD04 BPM-DC240-CD04

Product Features:

Rated Power: 160kW, 240kW
Ingress Protection: IP54
Cooling method: Air Cooled / Liquid Cooled
Protocol Standard: OCPP1.6
Display: 7" LCD with touch screen

Rated Power:

160kW

240kW

Get a Quote

Product Overview

This integrated four-gun charging station was developed to meet specific customer needs, greatly alleviating the shortage of charging guns. One charging station can meet 4 vehicles to replenish power at the same time, making them ideal for a variety of settings where speed and reliability are essential. Whether you're managing a commercial charging hub or supporting a fleet of electric vehicles, our charging piles provide a seamless solution to keep EVs powered up and on the move.

Ultra-Fast Charging Capability

Leverages Air-cooled or liquid-cooled technology to support high currents up to 300A, enabling significantly reduced charging times for compatible vehicles.

Future-Proof Flexibility

The modular power design (160kW 240kW) and support for all connector types make this charger series adaptable to evolving market demands and different vehicle fleets.

All-Weather Reliability

Engineered with a rugged IK10 and IP54-rated enclosure, ensuring durable performance in diverse climatic conditions and high-traffic locations.

Superior Connectivity & Management

Integrated with Ethernet, 3G/4G, and WiFi for seamless remote monitoring, diagnostics, and fleet management via the OCPP 1.6 protocol.

Enhanced User Experience

Combines a large, intuitive touchscreen with multiple, convenient access control options to provide a smooth and efficient charging session for all EV drivers.

Product Characters

Parameter	Specification
Input Voltage	400VAC / 480VAC
Input Frequency	50/60Hz
Output Voltage	200VDC - 1000VDC
Output Current	0-300A
Communication	Ethernet-Standard, 3G/4G, Wifi
Connect Standard	GB/T, CCS2, CCS1, CHAdeMO, NACS
Length of Charging Cable	5m or customize
Operating Temperature	-30℃ to 55℃
Efficiency	≥94% at nominal output power
Access Control	RFID, Scan, Credit Card
Working & Storage Humidity	≤95% RH, ≤99%RH (Non-condensing)
Safety Protection	Overvoltage protection, lightning protection, overcurrent protection, leakage protection, waterproof protection, etc.
Emergency Stop	Yes
Item Measurement	900 x 1975 x 900 mm
