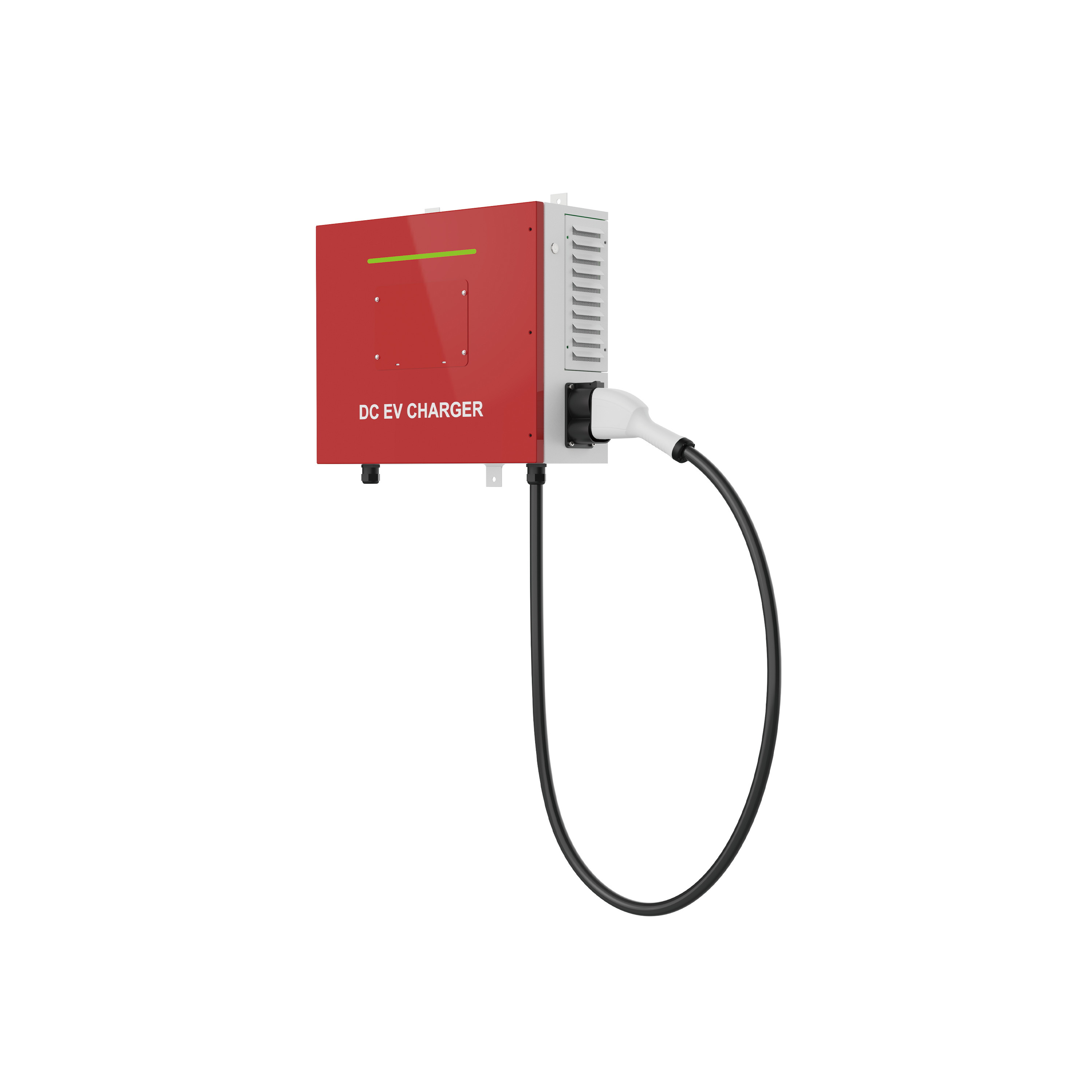

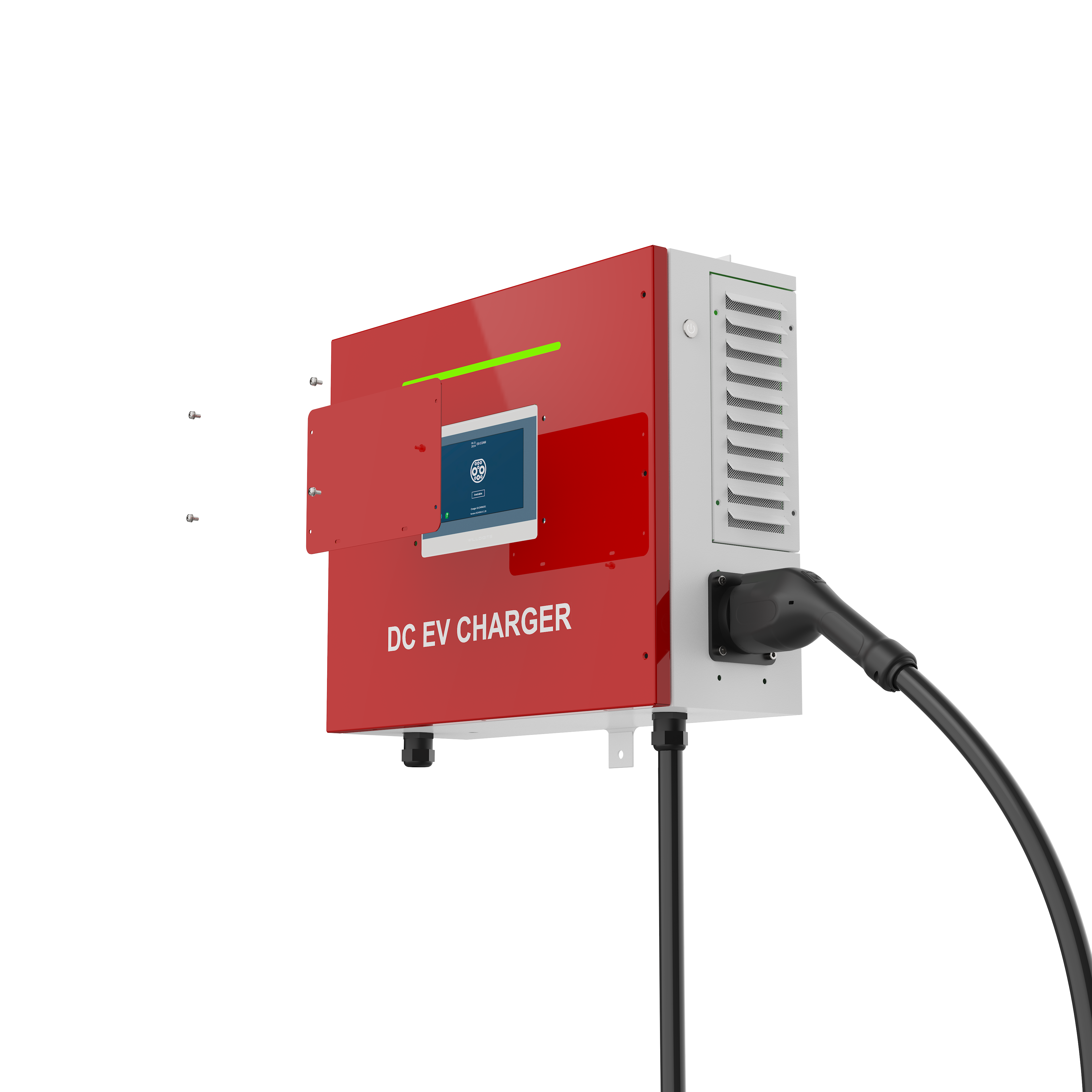

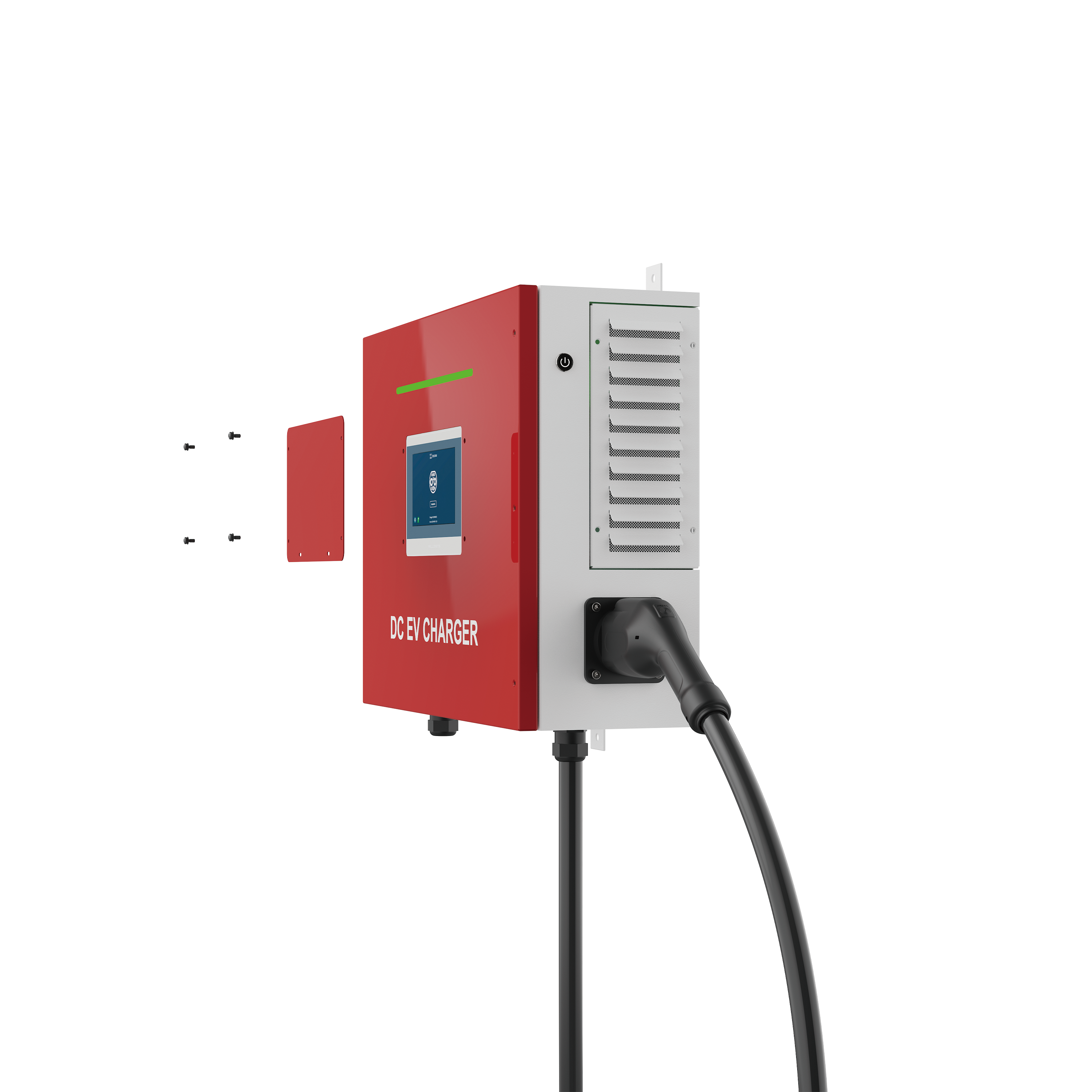

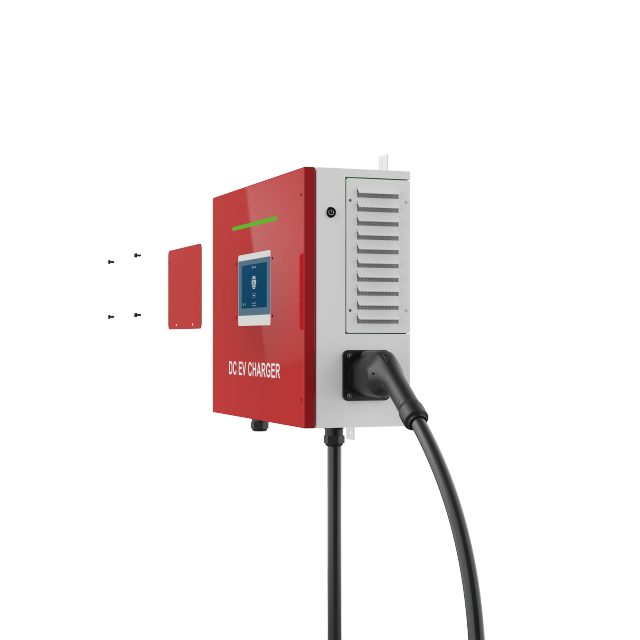

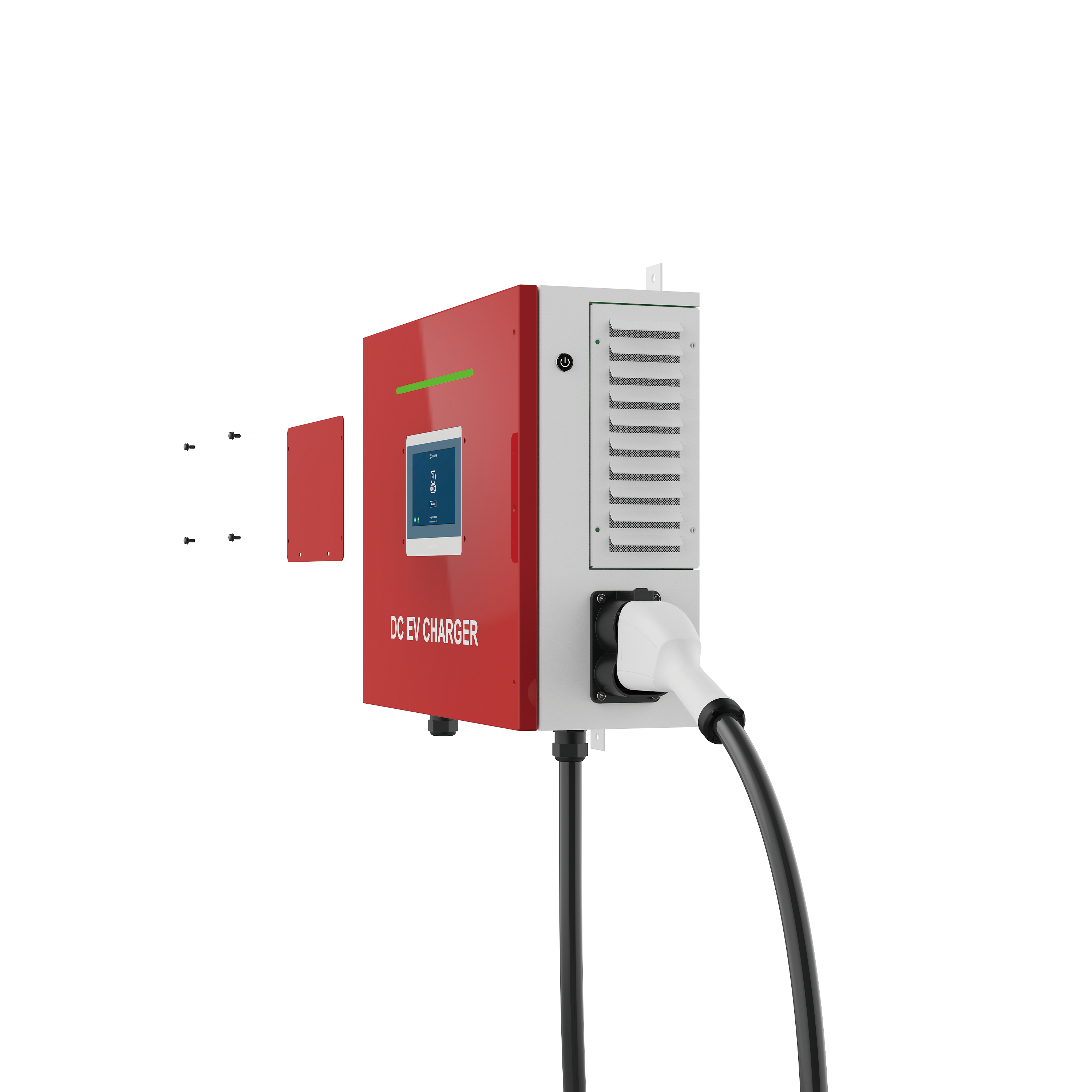

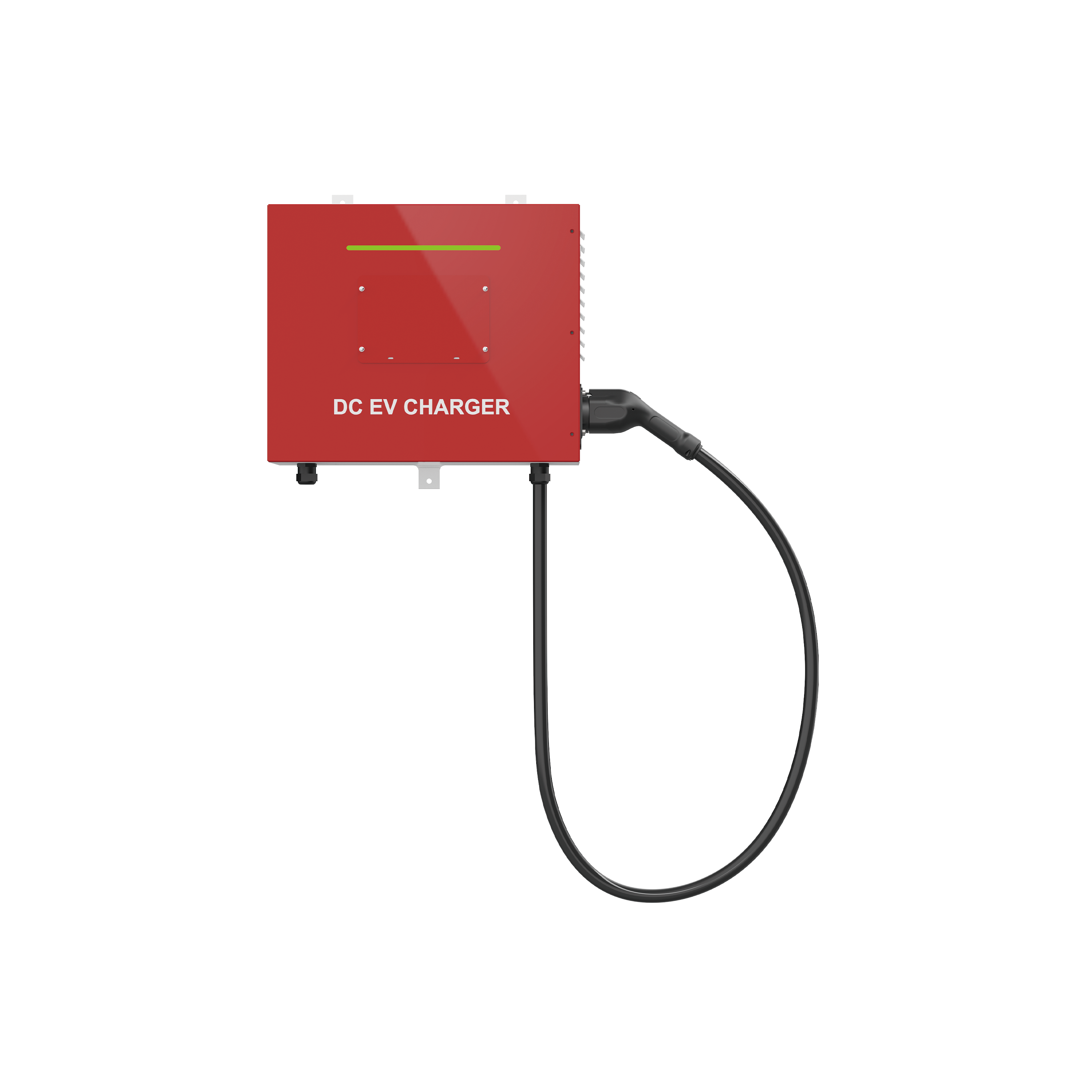

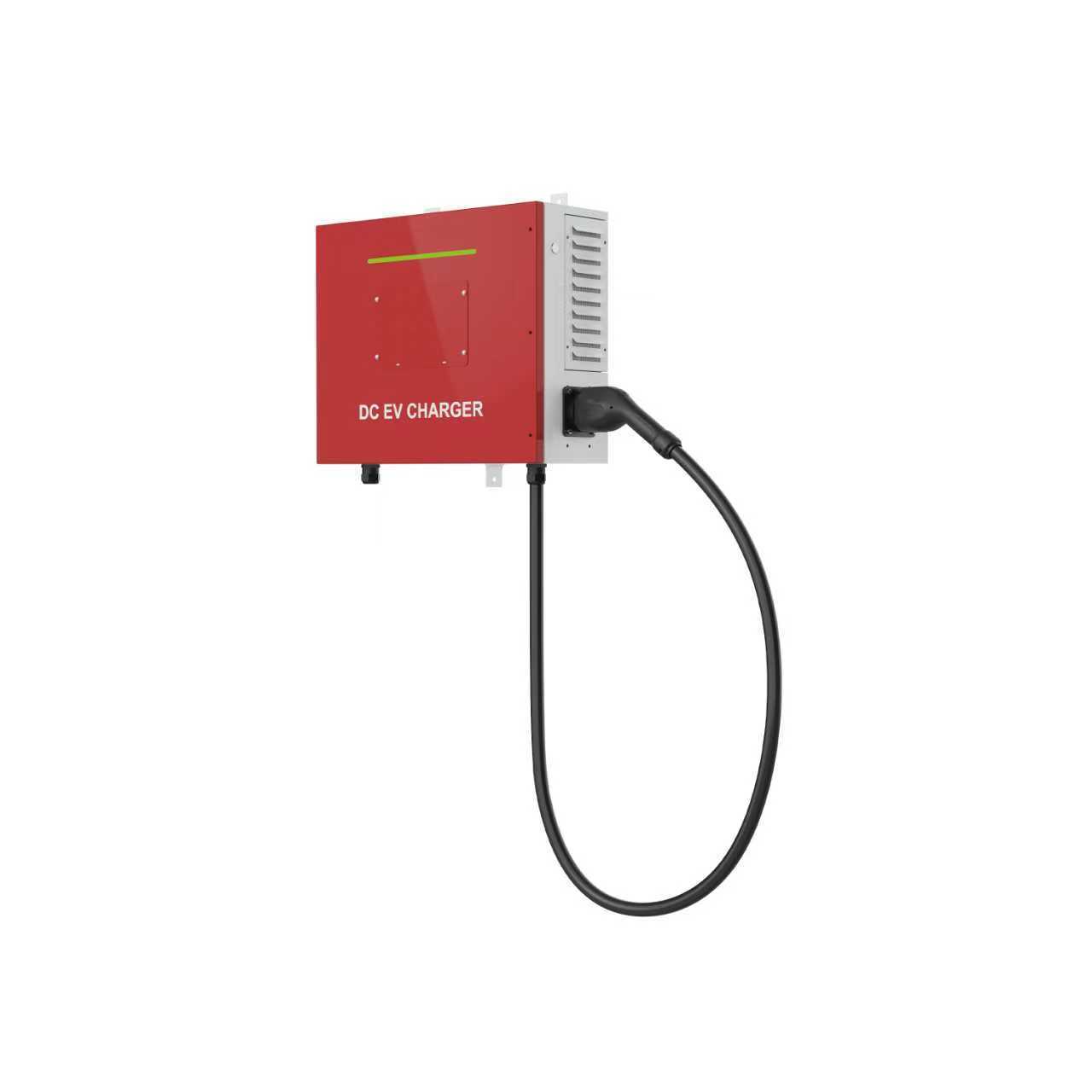

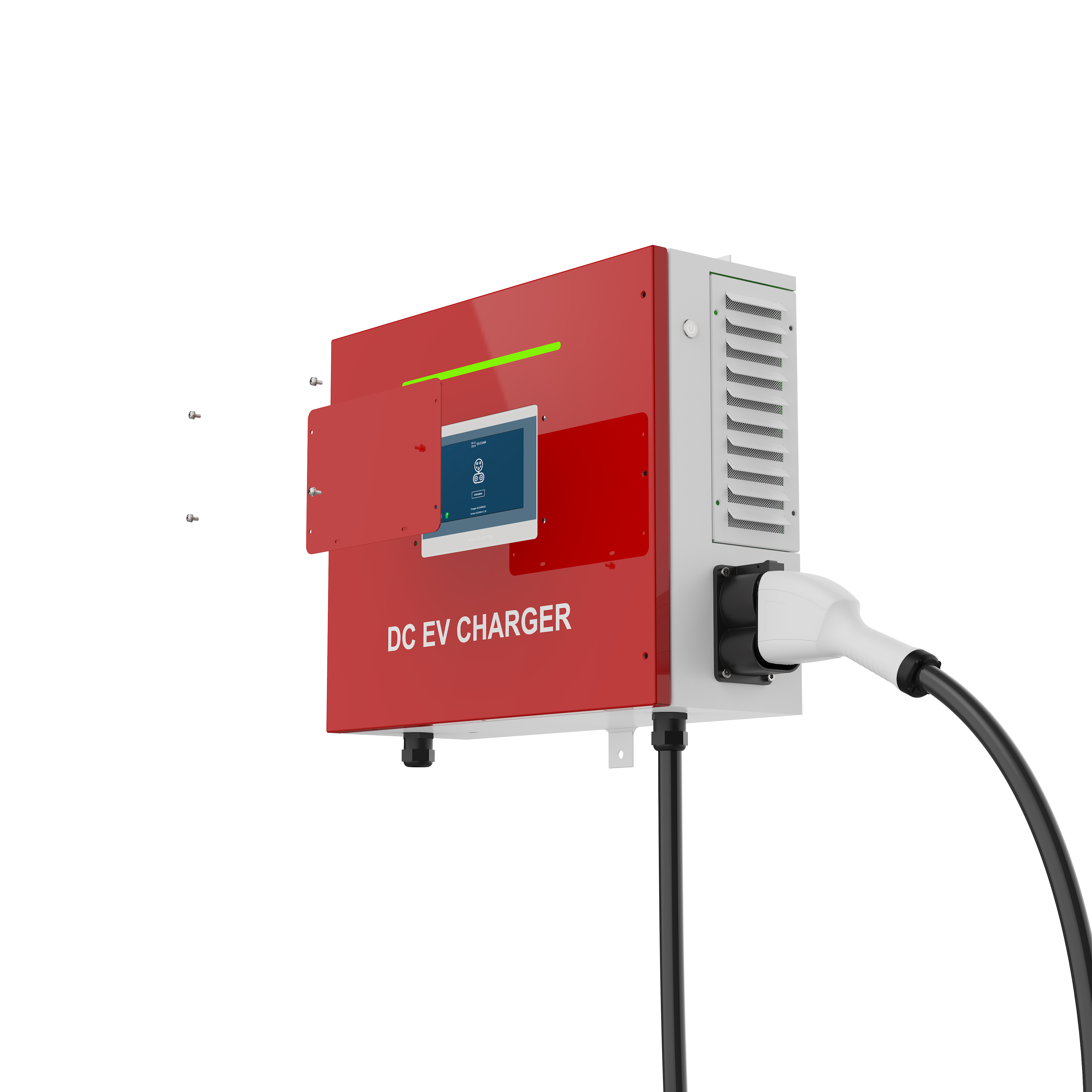

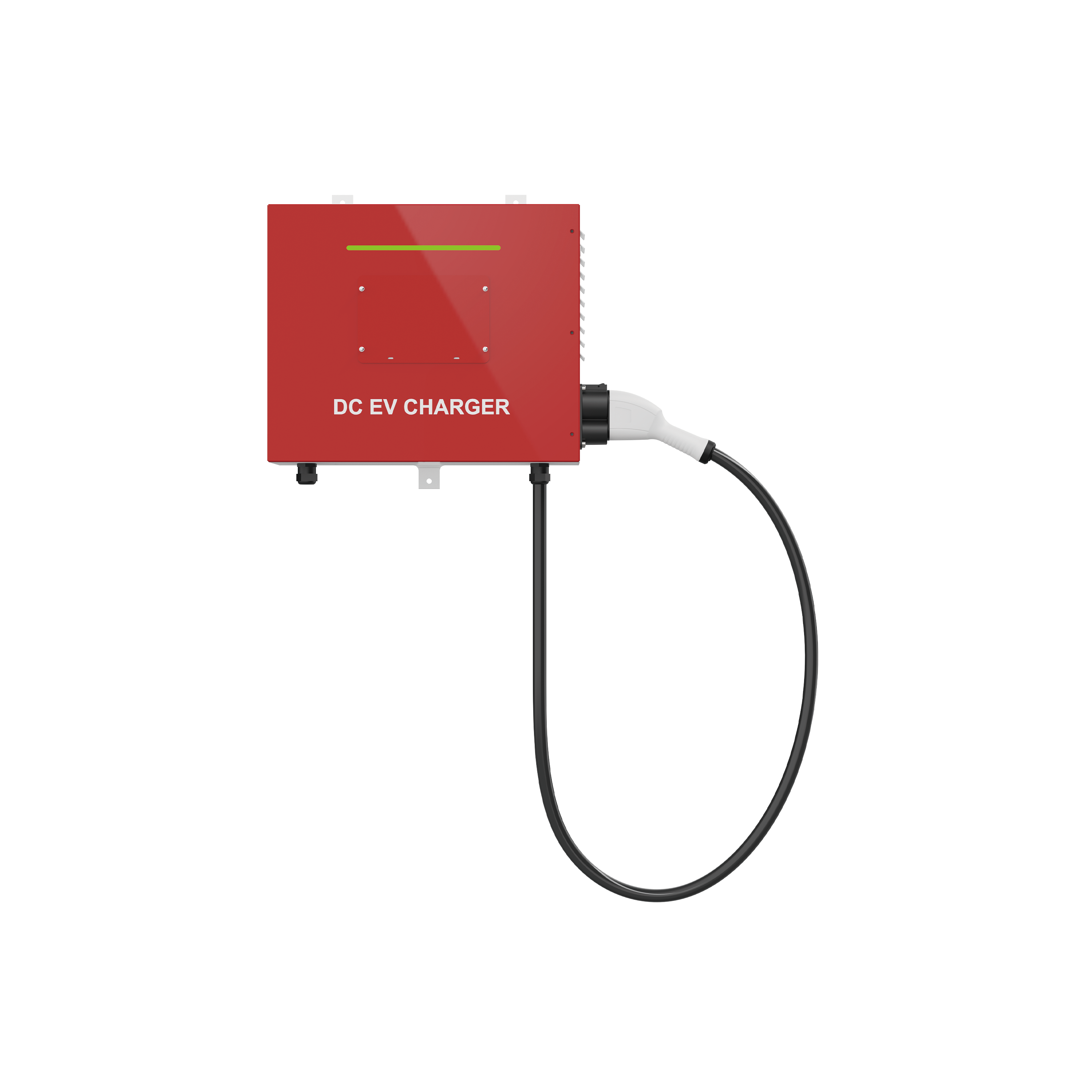

20kW 30kW 40kW DC EV Charger Fast Commercial Charging Station with Single Gun for Fleets, Private Energy Vehicle

Name: 20kW 30kW 40kW DC EV Charger Fast Commercial Charging Station with Single Gun for Fleets, Private Energy Vehicle
Brand: BPM
Availability: InStock
Rating: 5 (1 reviews)

Product Features:

Rated Power: 20kW, 30kW, 40kW
Cooling method: Air Cooled
Protocol Standard: OCPP1.6J
Ingress Protection: IP54

Rated Power:

20kW

30kW

40kW

Get a Quote

Product Overview

This EV charging piles, ranging as 20kW, 30kW, 40kW, are designed to meet the growing demands of electric vehicle charging with efficiency and versatility. These charging stations deliver rapid DC fast charging, making them ideal for a variety of settings where speed and reliability are essential. Whether you're managing a commercial charging hub or supporting the detection of electric vehicle, our charging piles provide a seamless solution to keep EVs powered up and on the move.

Ultra-Fast Charging Capability

Leverages air-cooled technology to support high currents, enabling significantly reduced charging times for compatible vehicles.

Future-Proof Flexibility

The modular power design (20kW, 30kW, 40kW) and support for all connector types make this charger series adaptable to evolving market demands and different private vehicles.

All-Weather Reliability

Engineered with a rugged IK10 and IP54-rated enclosure, ensuring durable performance in diverse climatic conditions and high-traffic locations.

Superior Connectivity & Management

Integrated with Ethernet, 3G/4G, and WiFi for seamless remote monitoring, diagnostics, and vehicle management via the OCPP 1.6 protocol.

Enhanced User Experience

Combines a large, intuitive touchscreen with multiple, convenient access control options to provide a smooth and efficient charging session for all EV drivers.

Product Characters

Parameter	Specification
Input Voltage	400VAC / 480VAC
Input Frequency	50/60Hz
Output Voltage	200VDC - 1000VDC
Output Current	125A
Communication	Ethernet-Standard, 3G/4G
Connect Standard	GB/T, CCS2, CCS1, CHAdeMO, NACS
Length of Charging Cable	3m
Operating Temperature	-30℃ to 75℃
Efficiency	≥94% at nominal output power
Access Control	Screen
Working & Storage Humidity	≤95% RH, ≤99%RH (Non-condensing)
Safety Protection	Overvoltage protection, lightning protection, overcurrent protection, leakage protection, waterproof protection, etc.
Emergency Stop	Yes
OEM&ODM	Support to cusotmize
Item Measurement	570 x 470x 210 mm
Display	7" LCD with touch screen
